Summary

Donaldson P766954 Replaces the Filtrec XD100G10B

Donaldson P766954
Representative product image Product image feedback

Donaldson P766954 Replaces the Filtrec XD100G10B

P766954
Donaldson
Filtrec XD100G10B
Description

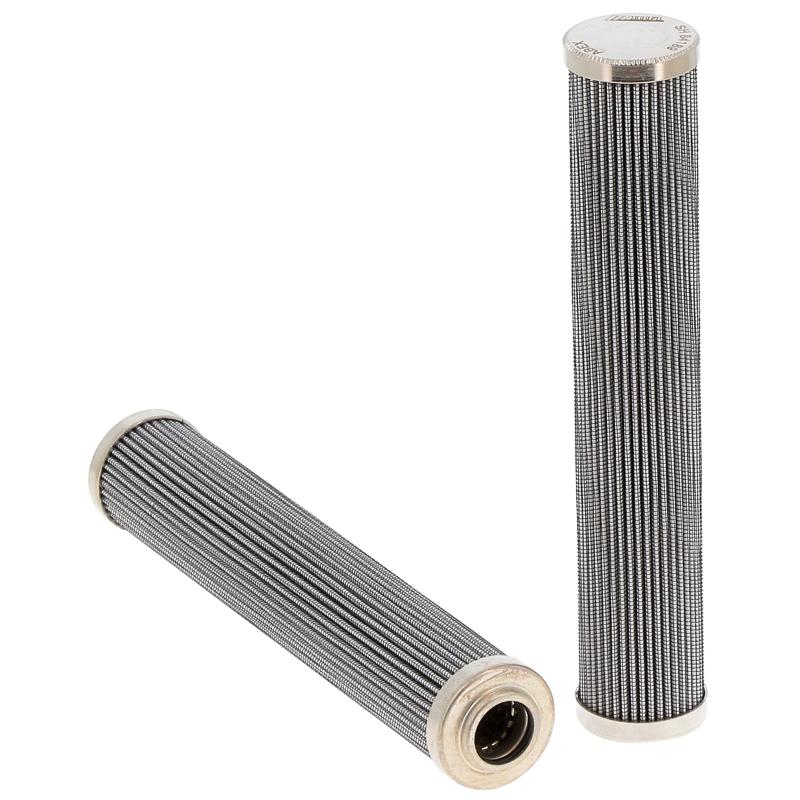

Genuine Donaldson P766954 Hydraulic Filter, Cartridge.

Brand: Donaldson
Price Matched
€125,95
0.1 kg
8421.29.80.90
Italy
0.5 kg
8421.99.90
Italy
Shipping Terms

Description

Genuine Donaldson P766954 Hydraulic Filter, Cartridge.

Specification

StyleDIN Pressure Filter
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 44 mm
Inner Diameter 22.1 mm
Length 249 mm
MediaGlass Fiber
Flow DirectionOUT-IN
Δ Collapse Pressure 210 BAR
Seal MaterialNitrile
Temperature Range -30 - +100°C

Approved Product

Find out more
Filtrec Brand Logo

Same Fit-Form & Function

As the Genuine Filtrec XD100G10B

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style DIN Pressure Filter
Outer Diameter 44 mm
Inner Diameter 22.1 mm
Length 249 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 210 BAR
Seal Nitrile
Temperature Range -30 - +100°C
