Donaldson P958246 Replaces the Filtrec WX467

Donaldson P958246
Representative product image Product image feedback

Donaldson P958246 Replaces the Filtrec WX467

P958246
Donaldson
Filtrec WX467
Description

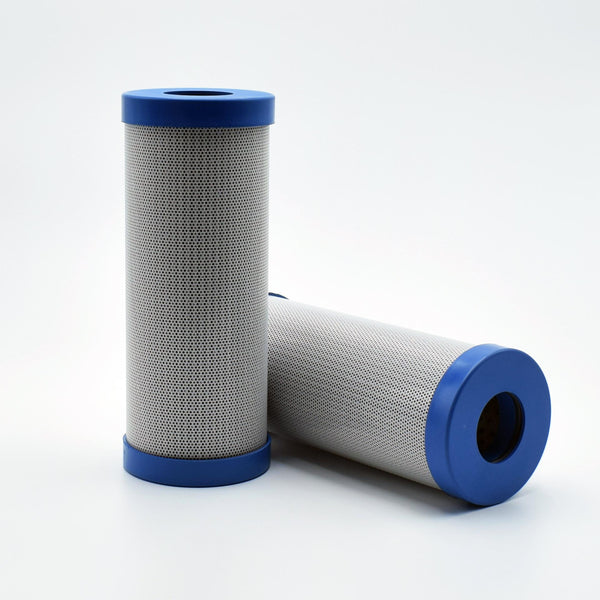

Genuine Donaldson P958246 Hydraulic Filter, Cartridge.

Brand: Donaldson
Price Matched
€51,95
0.04 kg
8421.29.80.90
Poland
0.86 kg
8421.99.90
Italy
Shipping Terms

Description

Genuine Donaldson P958246 Hydraulic Filter, Cartridge.

Specification

StyleReturn Filter
Efficiency 117µ @ β200
Efficiency 220µ @ β1000
Outer Diameter 88 mm
Inner Diameter 40.2 mm
Length 328 mm
MediaSynthetic
Flow DirectionOUT-IN
Δ Collapse Pressure 10 BAR
Seal MaterialNitrile
Temperature Range -30 - +100°C

Approved Product

Find out more
Filtrec Brand Logo

Same Fit-Form & Function

As the Genuine Filtrec WX467

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
17µ @ β200
Efficiency 2 20µ @ β1000
Style Return Filter
Outer Diameter 88 mm
Inner Diameter 40.2 mm
Length 328 mm
Media Type Synthetic
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
