Stauff SP-024-F-20-B/4 Replacement Pressure Filter
Stauff SP-024-F-20-B/4 Replacement Pressure Filter
SP-024-F-20-B/4
Stauff
Stauff
Description

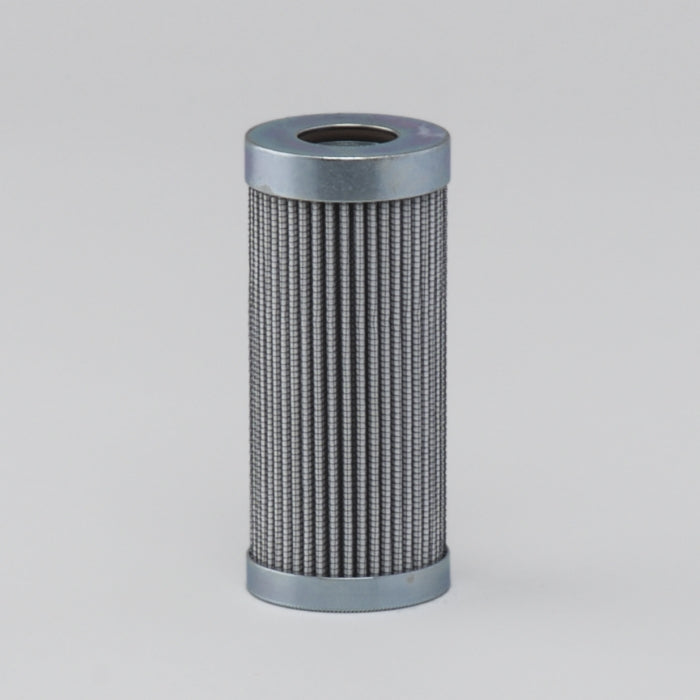

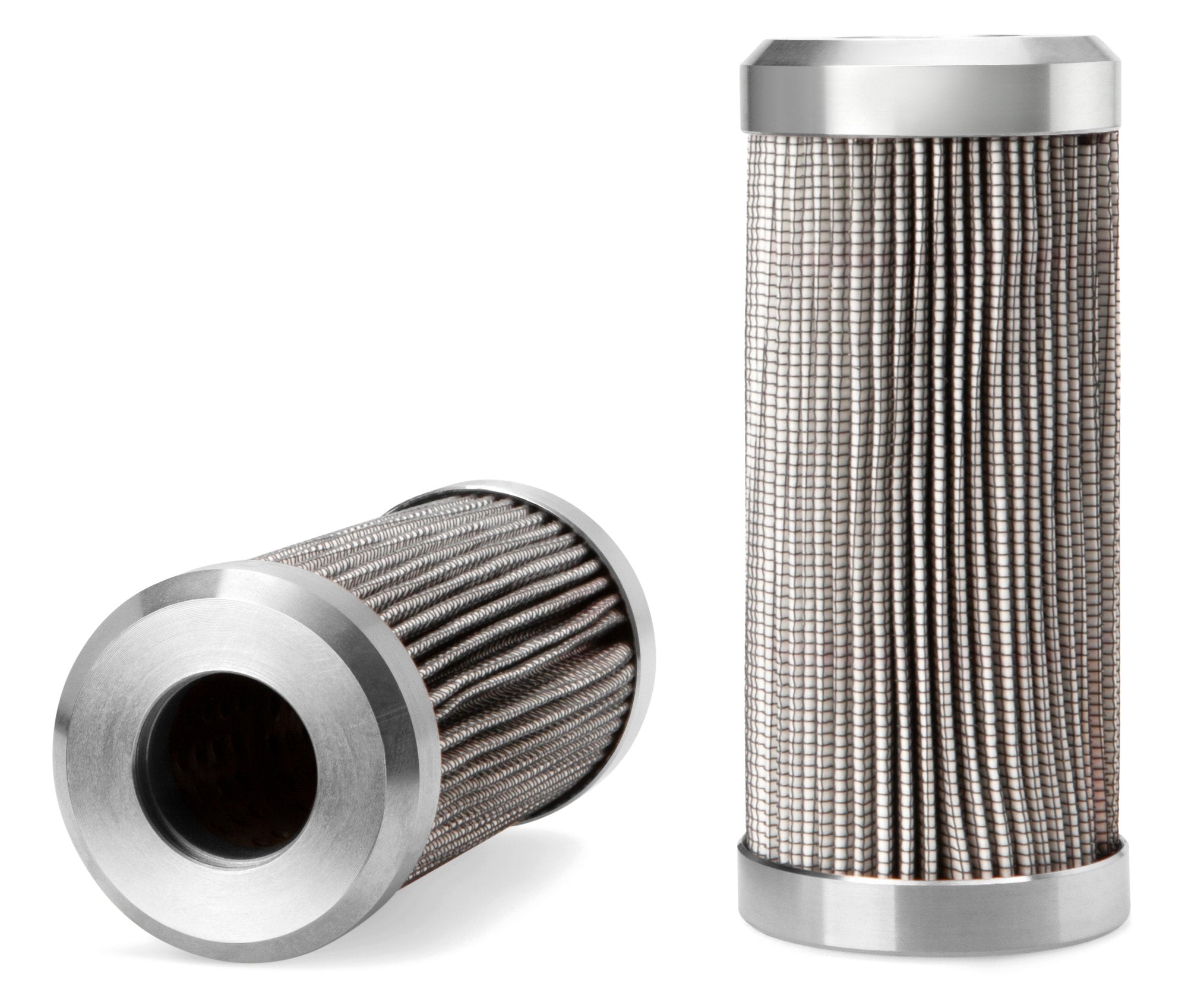

Replacement Filter Element for Pressure Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 49,5 Inner Diameter (mm): 23,9 Length (mm): 115 Sealing: NBR, β ratio >200
Brand:
Stauff
Regular price
€94,95
Unit price
per
0.39 kg
8421.99.90
Germany
0.38 kg
8421.99.90
France
0.4 kg
8421.99.90
United Kingdom
0.88 kg
8421.99.90
Italy
Description
Replacement Filter Element for Pressure Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 49,5 Inner Diameter (mm): 23,9 Length (mm): 115 Sealing: NBR, β ratio >200Specification
| Style | Pressure Filter |
| Efficiency 1 | 20µ @ β200 |
| Efficiency 2 | 22µ @ β1000 |
| Outer Diameter | 51.0 mm |
| Inner Diameter | 23.8 mm |
| Length | 114.0 mm |
| Media | Glass Fiber |
| Flow Direction | OUT-IN |
| Δ Collapse Pressure | 210 BAR |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
