MICROFIT MFHLP32400 Replaces the Rexroth R928028836

MICROFIT MFHLP32400

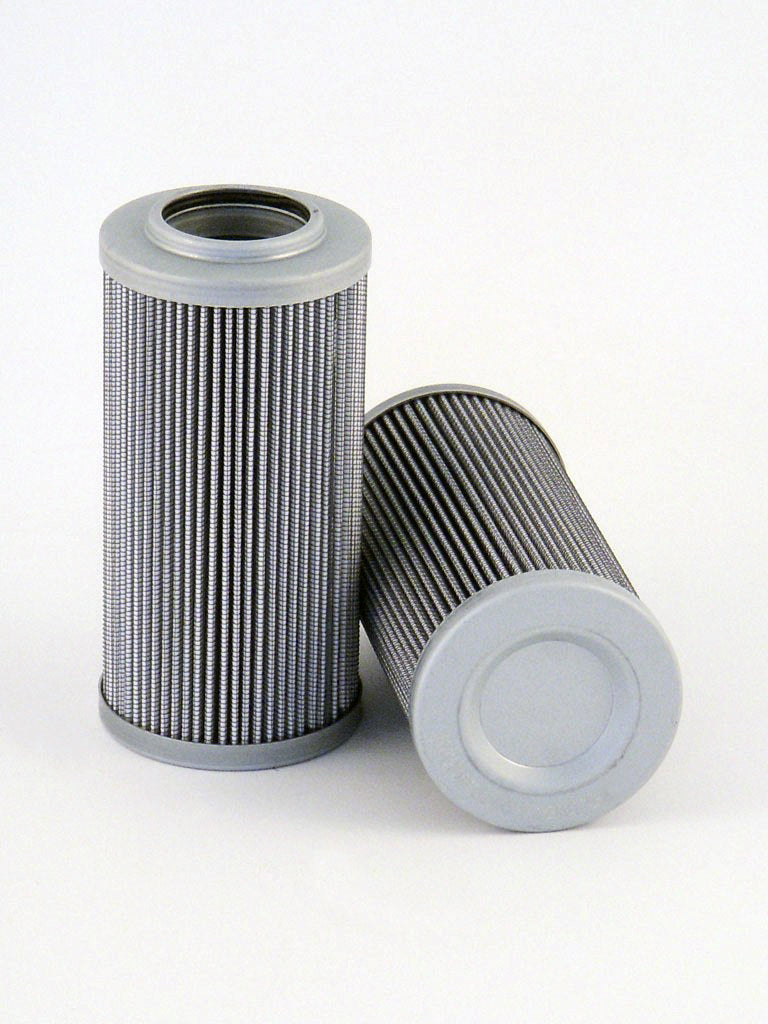

Representative product image Product image feedback

MICROFIT® UltraGen III MFHLP32400 Replaces the Rexroth R928028836

MFHLP32400
MICROFIT
Rexroth R928028836
Description

The MICROFIT® UltraGen III MFHLP32400 is the MICROFIT® approved replacement to the Rexroth R928028836. Engineered and manufactured in Great Britain the MFHLP32400

Brand: MICROFIT
Price Matched
€91,95
2.43 kg
8421.99.90
United Kingdom
1.1 kg
8421.99.90
Italy
1.0 kg
8421.99.90
France
8421.99.90
Germany
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP32400 is the MICROFIT® approved replacement to the Rexroth R928028836. Engineered and manufactured in Great Britain the MFHLP32400

Specification

StylePressure Filter
Efficiency 1200µ
Outer Diameter 80.0 mm
Inner Diameter 42.2 mm
Length 248.0 mm
MediaWire Mesh
Flow DirectionOUT-IN
Δ Collapse Pressure 30 BAR
Seal MaterialNitrile
Temperature Range -30 - +100°C

Approved Product

Find out more
Rexroth Brand Logo

Same Fit-Form & Function

As the Genuine Rexroth R928028836

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
200µ
Efficiency 2
Style Pressure Filter
Outer Diameter 80.0 mm
Inner Diameter 42.2 mm
Length 248.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 30 BAR
Seal Nitrile
Temperature Range -30 - +100°C
