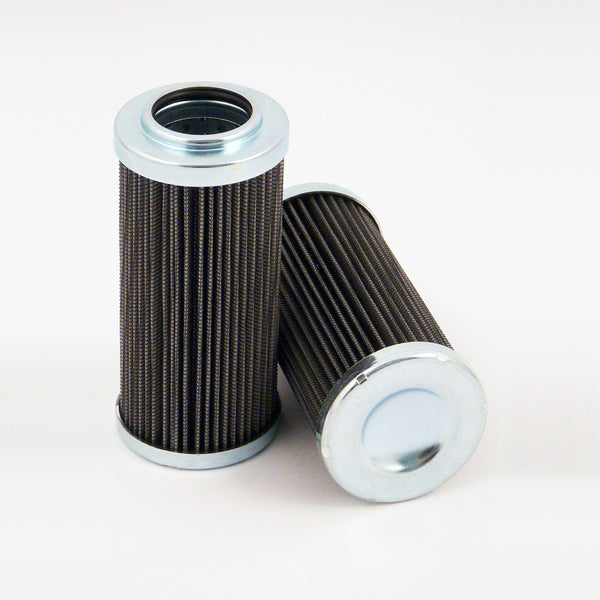

MICROFIT MFHLP31524 Replaces the Rexroth R928022431

MICROFIT MFHLP31524
Representative product image Product image feedback

MICROFIT® UltraGen III MFHLP31524 Replaces the Rexroth R928022431

MFHLP31524
MICROFIT
Rexroth R928022431
Description

The MICROFIT® UltraGen III MFHLP31524 is the MICROFIT® approved replacement to the Rexroth R928022431. Engineered and manufactured in Great Britain the MFHLP31524

Brand: MICROFIT
Price Matched
€125,95
0.95 kg
8421.99.90
United Kingdom
0.43 kg
8421.99.90
Italy
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP31524 is the MICROFIT® approved replacement to the Rexroth R928022431. Engineered and manufactured in Great Britain the MFHLP31524

Specification

StylePressure Filter
Efficiency 125µ
Outer Diameter 60.0 mm
Inner Diameter 34.2 mm
Length 186.0 mm
MediaWire Mesh
Flow DirectionOUT-IN
Δ Collapse Pressure 20 BAR
Seal MaterialViton
Temperature Range -25 - +120°C

Approved Product

Find out more
Rexroth Brand Logo

Same Fit-Form & Function

As the Genuine Rexroth R928022431

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
25µ
Efficiency 2
Style Pressure Filter
Outer Diameter 60.0 mm
Inner Diameter 34.2 mm
Length 186.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 20 BAR
Seal Viton
Temperature Range -25 - +120°C
