MICROFIT MFHLP32475 Replaces the National Filters PEP20015940SSV

MICROFIT MFHLP32475

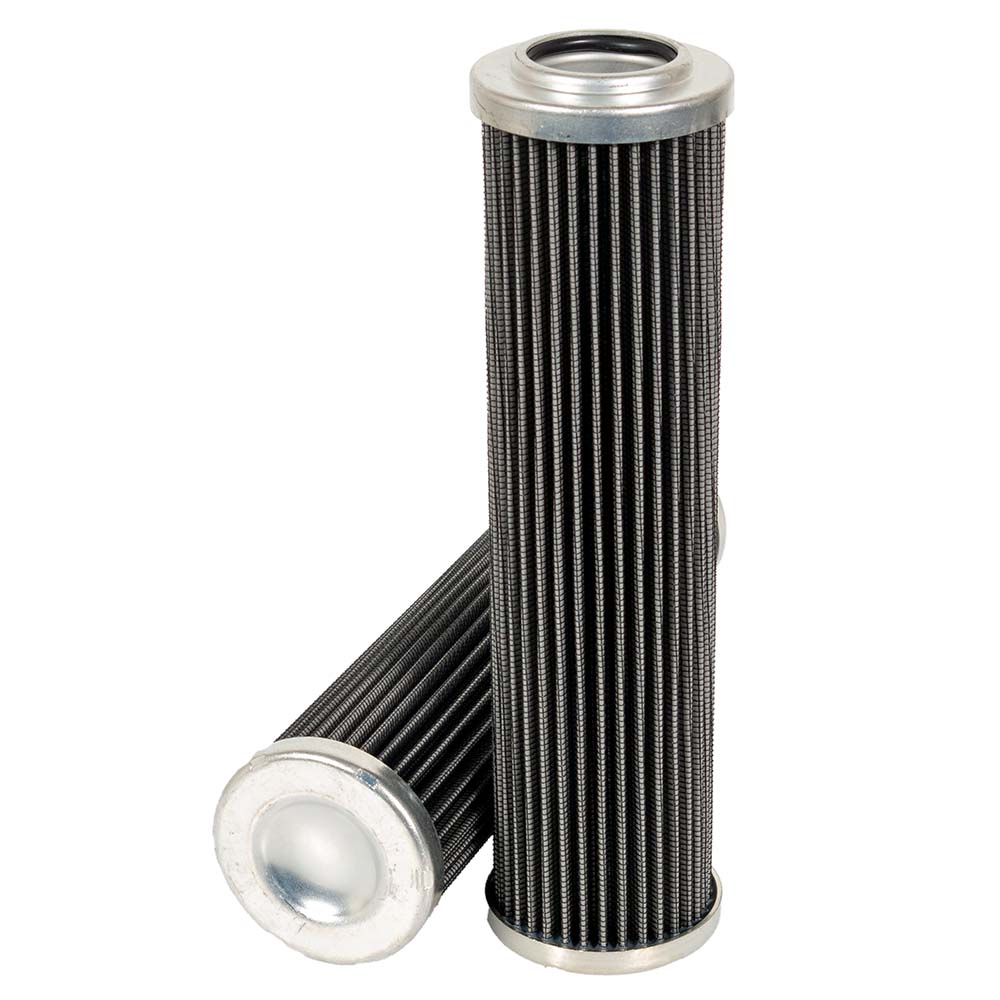

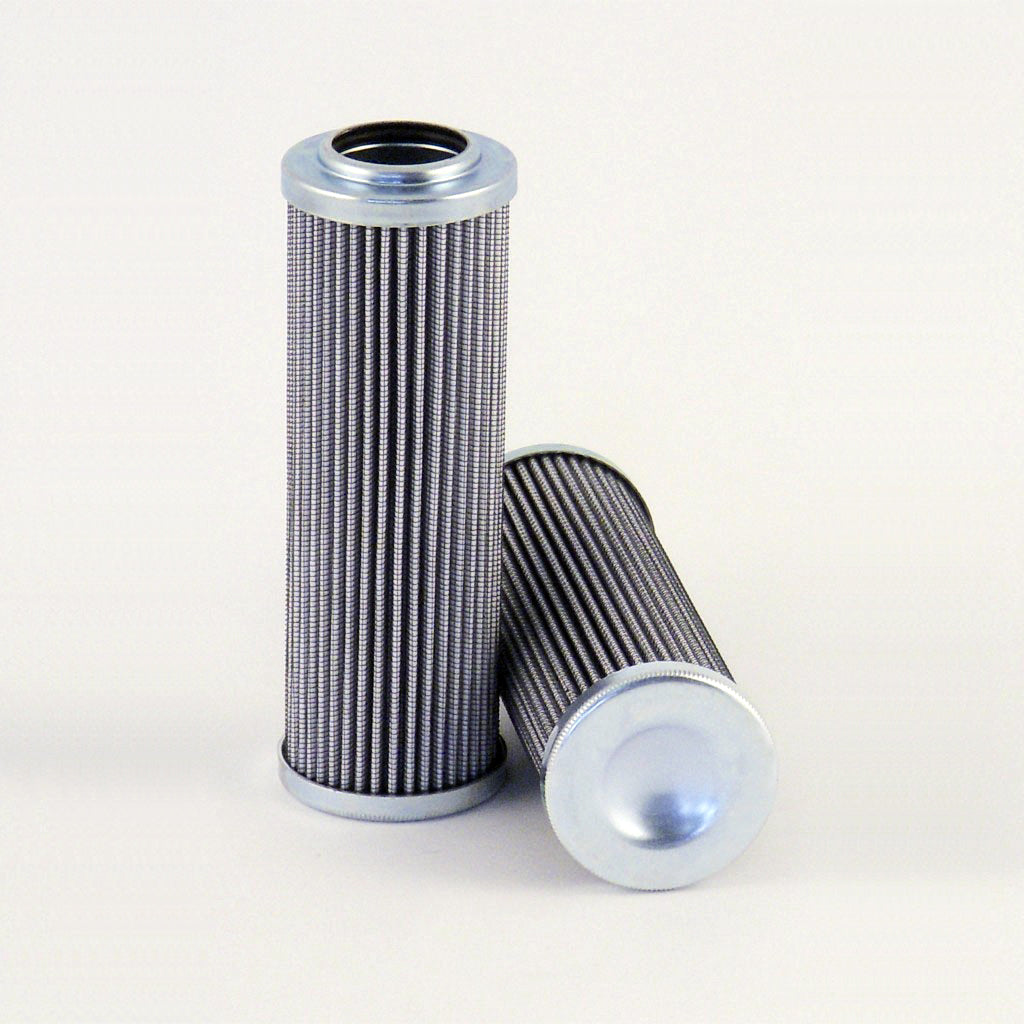

Representative product image Product image feedback

MICROFIT® UltraGen III MFHLP32475 Replaces the National Filters PEP20015940SSV

MFHLP32475
MICROFIT
National Filters PEP20015940SSV
Description

The MICROFIT® UltraGen III MFHLP32475 is the MICROFIT® approved replacement to the National Filters PEP20015940SSV. Engineered and manufactured in Great Britain the MFHLP32475

Brand: MICROFIT
Price Matched
€76,95
1.24 kg
8421.99.90
United Kingdom
0.56 kg
8421.99.90
Italy
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP32475 is the MICROFIT® approved replacement to the National Filters PEP20015940SSV. Engineered and manufactured in Great Britain the MFHLP32475

Specification

StylePressure Filter
Efficiency 140µ
Outer Diameter 60 mm
Inner Diameter 34.2 mm
Length 225 mm
MediaWire Mesh
Flow DirectionOUT-IN
Δ Collapse Pressure 30 BAR
Seal MaterialViton
Temperature Range -25 - +120°C

Approved Product

Find out more
Default Brand Logo

Same Fit-Form & Function

As the Genuine National Filters PEP20015940SSV

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
40µ
Efficiency 2
Style Pressure Filter
Outer Diameter 60 mm
Inner Diameter 34.2 mm
Length 225 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 30 BAR
Seal Viton
Temperature Range -25 - +120°C
