MICROFIT MFHR51224 Replaces the Mahle P8300D26N3NBR

MICROFIT MFHR51224
Representative product image Product image feedback

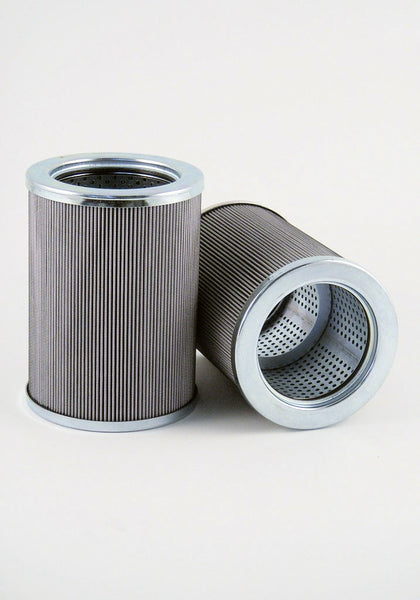

MICROFIT® UltraGen III MFHR51224 Replaces the Mahle P8300D26N3NBR

MFHR51224
MICROFIT
Mahle P8300D26N3NBR
Description

The MICROFIT® UltraGen III MFHR51224 is the MICROFIT® approved replacement to the Mahle P8300D26N3NBR. Engineered and manufactured in Great Britain the MFHR51224

Brand: MICROFIT
Price Matched
€486,95
11.22 kg
8421.99.90
United Kingdom
5.09 kg
8421.99.90
Italy
Shipping Terms

Description

The MICROFIT® UltraGen III MFHR51224 is the MICROFIT® approved replacement to the Mahle P8300D26N3NBR. Engineered and manufactured in Great Britain the MFHR51224

Specification

StyleReturn Filter
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 152.0 mm
Inner Diameter 105.5 mm
Length 649.0 mm
MediaGlass Fiber
Flow DirectionOUT-IN
Δ Collapse Pressure 10 BAR
Seal MaterialNitrile
Temperature Range -30 - +100°C

Approved Product

Find out more
Mahle Brand Logo

Same Fit-Form & Function

As the Genuine Mahle P8300D26N3NBR

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Return Filter
Outer Diameter 152.0 mm
Inner Diameter 105.5 mm
Length 649.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
