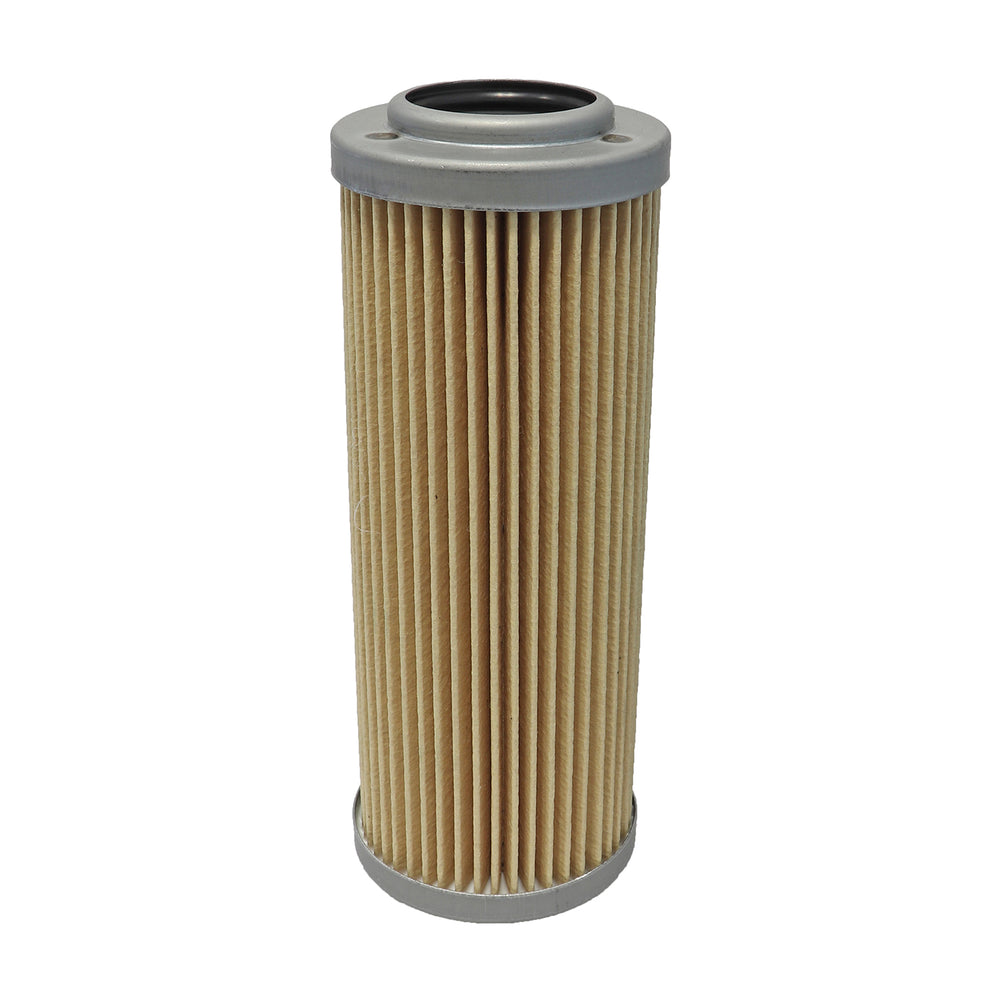

Stauff NR-063-K-10-B Replacement DIN Return Filter
Stauff NR-063-K-10-B Replacement DIN Return Filter
NR-063-K-10-B
Stauff
Stauff
Brand:
Stauff
Sort by:
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Filter Paper Outer Diameter (mm): 58 Inner Diameter (mm): 32,2 Length (mm): 159 Sealing: NBR, β ratio >2
€88,95
Shipped Tuesday, 20 May
| UNITS | PER UNIT |
|---|---|
| 2 - 4 | €87,18 |
| 5 - 9 | €85,40 |
| 10 - + | €83,62 |
0.24 kg
8421.99.90
Germany
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Filter Paper Outer Diameter (mm): 58 Inner Diameter (mm): 32,2 Length (mm): 159 Sealing: NBR, β ratio >2Specification
| Style | DIN Return Filter |
| Efficiency 1 | 10µ @ β2 |
| Outer Diameter | 58.0 mm |
| Inner Diameter | 32.2 mm |
| Length | 159.0 mm |
| Media | Cellulose |
| Flow Direction | OUT-IN |
| Δ Collapse Pressure | 10 BAR |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
