Summary

Donaldson P171502 Replaces the Filtration Group MP0301RN2025

Donaldson P171502
Representative product image Product image feedback

Donaldson P171502 Replaces the Filtration Group MP0301RN2025

P171502
Donaldson
Filtration Group MP0301RN2025
Description

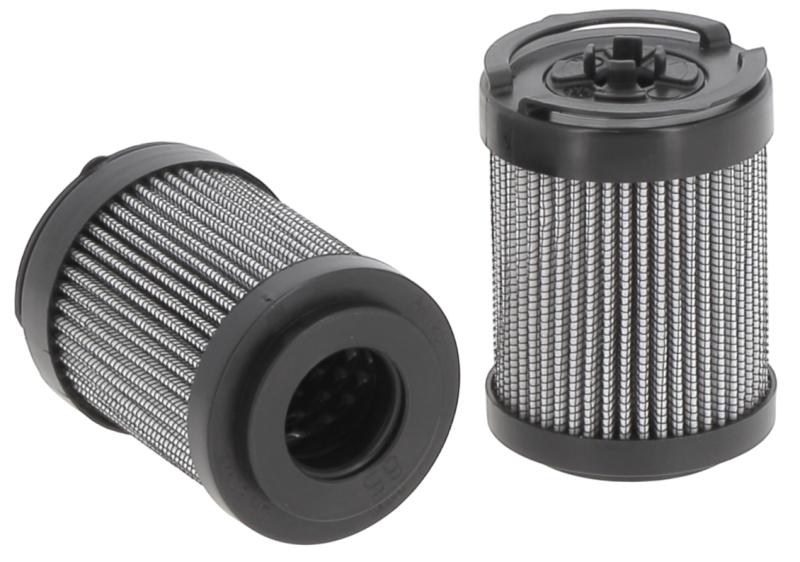

Genuine Donaldson P171502 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Brand: Donaldson
Price Matched
€14,95
0.13 kg
8421.29.80.90
Italy
0.1 kg
8421.99.90
Italy
0.12 kg
8421.99.90
France
Shipping Terms

Description

Genuine Donaldson P171502 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Specification

StyleReturn Filter
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 52.0 mm
Inner Diameter 24.5 mm
Length 72.0 mm
Bypass Pressure 1.7 BAR
MediaGlass Fiber
Flow DirectionOUT-IN
Δ Collapse Pressure 10 BAR
Seal MaterialNitrile
Temperature Range -30 - +100°C

Approved Product

Find out more
Filtration Group Brand Logo

Same Fit-Form & Function

As the Genuine Filtration Group MP0301RN2025

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Return Filter
Outer Diameter 52.0 mm
Inner Diameter 24.5 mm
Length 72.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

1.7 BAR
Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
