Specification

StylePRE-CLEANER, STRATACAP
GenerationStrata™ Cap
Efficiency96
Test StandardISO 5011, SAE J726

Description

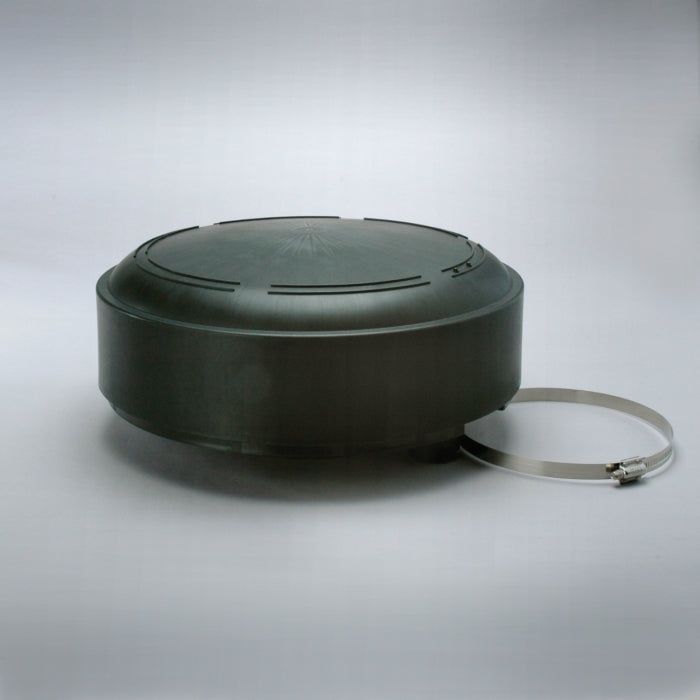

Why Choose Donaldson Strata™ Cap Pre-Cleaners?

Strata Cap pre-cleaners extend primary air filter life, boost system efficiency and extend engine life in heavy dust environments.
• The scavenged Strata Cap pre-cleaner removes up to 96% of incoming contaminant per ISO 5011/SAE J726.
• Offers the highest efficiency rating of any Donaldson self-contained pre-cleaner.
• Designed for the most demanding heavy dust environments in the construction and mining industries.
• Easy to use. No moving parts, built in rain cap, no bowl to clean or empty.

Donaldson Product

Genuine Donaldson H002704

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Donaldson Warranty

Donaldson Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
96%
Efficiency 2
Style Pre-Cleaner, Stratacap
Outer Diameter
Inner Diameter
Length
Media Type
Flow Direction
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal
Temperature Range
